China Stainless Steel Pressure High Flow Single Cartridge Filter Housing

Quantity:

Stainless Steel Pressure High Flow Single Cartridge Filter Housing

Features:
Light weight, large filtering area, fast flow, well-distributed hole.
Better thermal and chemical stability.
It is convenient to disassemble and assemble filter.


Application:
•  Food industry: beverage, liquor, purified water, etc.
•  Drugs industry: decarbonization, medical filtration, biologic extraction purification.
• The electronic industry: electronic and microelectronics, semiconductor industry water filtration.
• Chemical industry: liquid products making and raw material filtration (acid, alkali, alcohol), organic solvent and water filtration.
• Other fields: pure water pre-filtration, electroplating liquid, industrial oils, water filtration in oil field and boiler, etc.


Technical Parameters:
Accuracy: 0.1, 0.2, 0.45, 1, 3, 5, 10~100µm.
Material: PP, PES, PTFE, ACF, nylon membrane, etc.
Length: 10, 20, 30, 40.
Interface: 226, 222, flat pressing.
Working pressure: < 0.4Mpa


About US
The Payment Term:
TT 40% down payment and 70% balance agaisnt copy of B/L,L/C also can be accepted.
Delivery Date:
5-10 days according to different product.
The Transport Pattern:
Sea shipping or air transport.
Package way:
Wooden case
The Logo Issue:
If quantity is large,it absolutely no problem to do OEM.

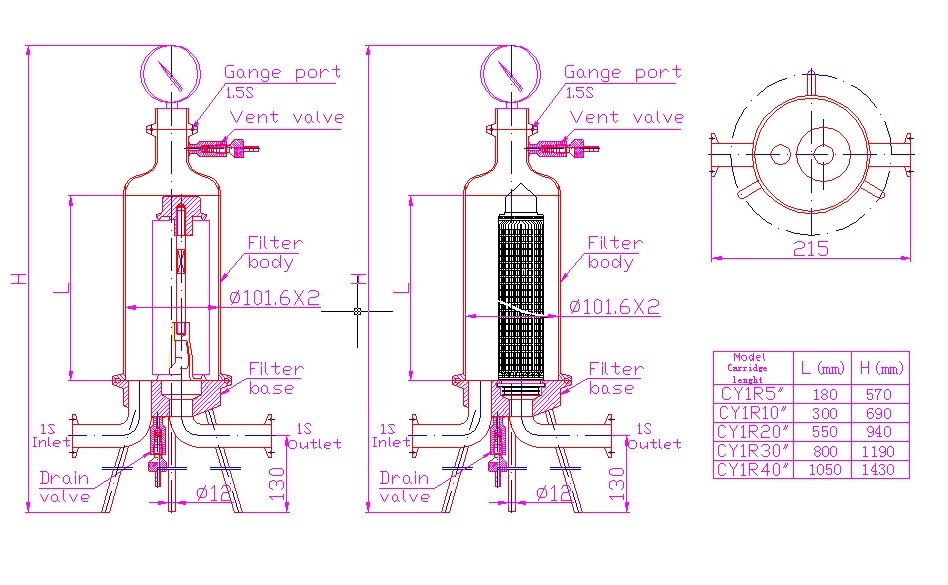

Model Flow rate(T/H) Filtration area(M2) Working pressure(Mpa)
SF-1R10" 0.5 0.5 0.6
SF-1R20" 1 1 0.6
SF-1R30" 1.5 1.5 0.6
SF-1R40" 2 2 0.6

China Stainless Steel Pressure High Flow Single Cartridge Filter Housing
The above-mentioned data is the standard, it can customize according to customer's requirements.
