Duplex High Flow Rate Bag Water Filter System

  • BF-1S BF-2S BF-4S
  • CHUANYA
  • 1
  • US $150/ Piece
  • L/C, T/T
  • 1000PCS/ Month
  • Mirror Polish, Electro Polish Ra<0.4um
  • Ozone Water Purifier
  • 150ºC
  • CE, GS, CSA
  • Ss 304/316L
  • Pressure
  • Flange
  • 150ºC
  • Ningbo, China
Quantity:

Duplex Large Flow Bag water Filter

Product Description

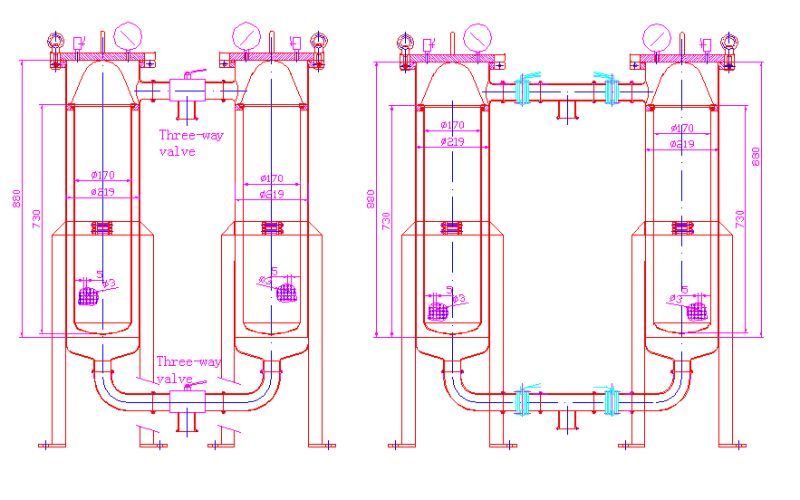

Duplex Bag Filter Housing were consisted of two Top-Flow bag  filter housing fitted together at the inlet and outlet by either a butterfly or ball valve assembly. The valves assembly. The valves were connected together by a return handle so as to operate easily from one bag filter housing to other bag filter housing. The filtration process can flow continuously during bag change-out.

Feature
1.Big flux
2.Long life
3.Evident effect
4.High intensity
5.Simple operation
6.Cost saving

Sepcification
1.Factory Price
2.High Flow Rates
3.High Dirt Holding Capacity
4.Easy to Operate & low Maintenance
5..Custom Design Service


Detailed Information
Material SUS304, SUS316L or carbon steel
Design Vessel Pressure 0.6~1.0Mpa
Operate Temperature -20---130ºC
Filtering Accuracy 0.1--20μm
Filter Bag Type 1#Bag, 2#Bag, 3#Bag, 4#Bag
Flow Type Side Entry, Top Entry, S-Multi, B-Multi Bag Filter
Connection Vessel GB, ANSI, JIS, and other flange
Inlet/Out Dimension 1'', 1.5'', 2'', 2.5'', 3'', 3.5''.4''
Surface Finish Mirror Polish, Electrical Polish, Acid Washing, Matt Polish, Mechanical Polishing
Usage Widely used in Food & Beverage, Wine Industry, Medicine, Chemical Industry, Electronic Industry and so on.

Duplex High Flow Rate Bag Water Filter System
The above-mentioned data is the standard, it can customize according to customer's requirements.
Duplex High Flow Rate Bag Water Filter System
Duplex High Flow Rate Bag Water Filter System
Duplex High Flow Rate Bag Water Filter System
Duplex High Flow Rate Bag Water Filter System
Duplex High Flow Rate Bag Water Filter System
