Food Grade Stainless Steel Movable Mixing Tank

Quantity:

High Quality Industrial Food Grade Stainless Steel Movable Mixing Tank

Application
• Water treatment: NF, UF, RO and ion exchange resin, etc.
• Food and beverage industry: filtration of juice, tea drinks, beer, liquor, wine, rice wine, healthy drinks and bottled purified water, etc.
• Drugs industry: injections, medical filtration, biologic extraction, purification and concentration.
• Petrochemical industry: oil extraction reinjection, chemical reagents, lubricant and high-purity chemical was filtered.
• The electronic industry: electronic and microelectronics, semiconductor industry water filtration.
• Fine chemicals industry: bio-engineering, oil refined, cleaning mixture, scientific experiments, etc.


Detailed Information

Design Parameter
Design pressure ATM~0.6Mpa
Design temperature According to the customers' requirements(0ºC~160ºC)

Surface Finish
Finish type Mechanical polishing, electrolytic polishing, sand blasting, picking
Polishing precision Mirror Polish Ra≤0.4μm

Connection
Inner-outlet Tri-clamo, Flange, Thread

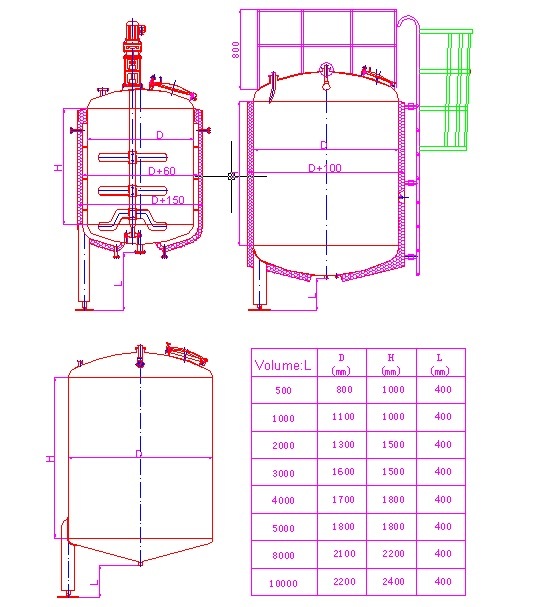

Normal Model And Main Technical Parameters
Parameter Model CYGCD-75 CYGCD-150 CYGCD-300 CYGCD-600 CYGCD-1000 CYGCD-2000
Effective volume:L 75 150 300 600 1000 2000
Barrel Diameter:mm Ф250 Ф600 Ф800 Ф1000 Ф1100 Ф1300
Height:mm 460 550 600 800 1000 1500
Mixing Motor power:KW 0.37 0.55 0.75 0.75 1.1 1.5
Mixing work RPM :r/min 200(propeller) (The design can be adjusted according to customers' usage)

Food Grade Stainless Steel Movable Mixing Tank
The above-mentioned data is the standard, it can customize according to customer's requirements.
