• Realize flexible mobile, with buffer storage function, and can add mixing, cleaning, heating or cooling function. Application • Water treatment: NF, UF, RO and ion exchange resin, etc.

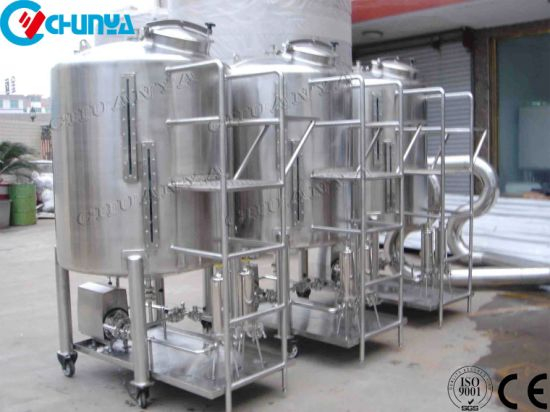

• reasonable design of the brake wheel, pedal or forklift groove, suitable for raw materials or finished product of mobile, convenient off-line cleaning.
• Can be optional of single layer tank or jacket form or there layer with insulation;
• There are 75L~2000L variety of specifications, it can be designed, customized according to the customers' requirements.
• Food and beverage industry: filtration of juice, tea drinks, beer, liquor, wine, rice wine, healthy drinks and bottled purified water, etc.
• Drugs industry: injections, medical filtration, biologic extraction, purification and concentration.
• Petrochemical industry: oil extraction reinjection, chemical reagents, lubricant and high-purity chemical was filtered.
• The electronic industry: electronic and microelectronics, semiconductor industry water filtration.
• Fine chemicals industry: bio-engineering, oil refined, cleaning mixture, scientific experiments, etc. Detailed Information Design Parameter
|Design pressure ||ATM~0.6Mpa |
|Design temperature ||According to the customers' requirements(0ºC~160ºC) |
|Finish type ||Mechanical polishing, electrolytic polishing, sand blasting, picking |
|Polishing precision || Mirror Polish Ra≤0.4μm |
|Inner-outlet ||Tri-clamo, Flange, Thread |
Normal Model And Main Technical Parameters
The above-mentioned data is the standard, it can customize according to customer's requirements.
|Parameter ||Model ||CYGCD-75 ||CYGCD-150 ||CYGCD-300 ||CYGCD-600 ||CYGCD-1000 ||CYGCD-2000 |
|Effective volume:L ||75 ||150 ||300 ||600 ||1000 ||2000 |
|Barrel ||Diameter:mm ||Ф250 ||Ф600 ||Ф800 ||Ф1000 ||Ф1100 ||Ф1300 |
|Height:mm ||460 ||550 ||600 ||800 ||1000 ||1500 |
|Mixing ||Motor power:KW ||0.37 ||0.55 ||0.75 ||0.75 ||1.1 ||1.5 |
|Mixing work RPM :r/min ||200(propeller) (The design can be adjusted according to customers' usage) |
