SS316 Cartridge Filter Housing for Water Filtration

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops
  • 1
  • SS304/SS316
Quantity:
Product Description

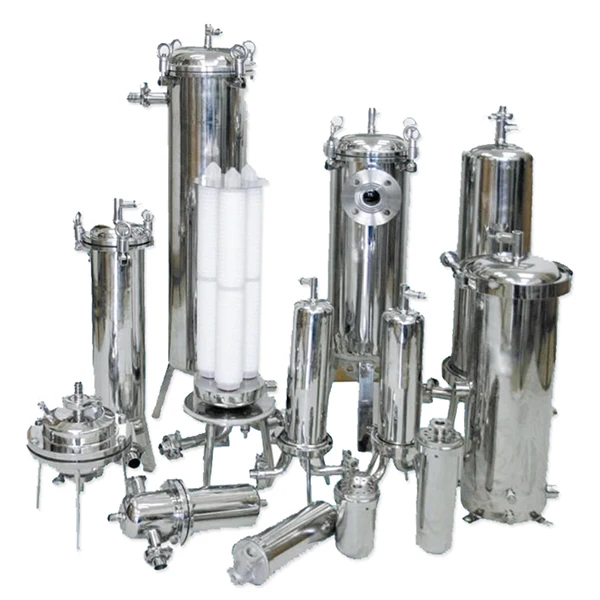

Chuanya Cartridge Filter Housings have special surface finish of mechanical polish, making the housings ideal choices for demanding processes requiring high purity. The smooth surface retains the lowest content of fine dust in fluid and eliminates possible contaminants while processing. With features of easy draining and clamp closure, the housings are advantaged of convenient operation and quick element change out.
Number of Cartridge
1
3
5
7
9
11
12
13
Customizable
Lenth of Cartridge
10", 20", 30", 40"
Micron Rating
0.1, 0.2, 0.45, 1, 3, 5, 10-100
Cartridge Material
PP, PE, Nylon, PTFE, Activated Carbon Fiber...
Cartridge End Cap Configuration
DOE, 222/Fin, 222/Flat, 226/Fin, 226/Flat
Design Operating Pressure
0.6Mpa, 1.0Mpa
Material of construction
SS304, SS316, SS316L
Seal Ring Material
Silicone, Rubber, Fluoro...
Inlet/Outlet Connection
Tri clamp, Flange, Thread
Inlet/Oulet Size
DN25, DN50, DN65, DN80, DN100
Surface Finish
Sandblasting, Polishing
We provides top of the range filter cartridge filter bag housings to suit a multitude of filtration applications. A well
constructed filter housing is a key part of a reliable filtration system. The full range of filter housings available will go
along way to giving longevity and value for money to your filtration needs.

Filter housings is in a wide variety of materials and types of construction, from single filter bag to multi-round cartridges, and offered to suit every application.

More Features:

1) Designed for Cartridge Filtration System   Consists of stainless steel housing, bag holder and filter cartridges   Wide range of bag sizes for choice 2) Complete Stainless Steel Structure   Quality stainless steel 304 or 316L material   High presssure &high temperature design are available 3) Meet the GMP Requirements   Smooth and round corner design are available   Surface is mechanical/electro polished or sand blasting passivation 4) Clean-in-Place (CIP)/Steam-in-Place(SIP) Design
Applications
Applicable to the fields of food, dairy, beverage, pharmacy, cosmetic etc industry.
1) Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
2) Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
3) Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish etc.
4) Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Biological Products etc.

Production Process

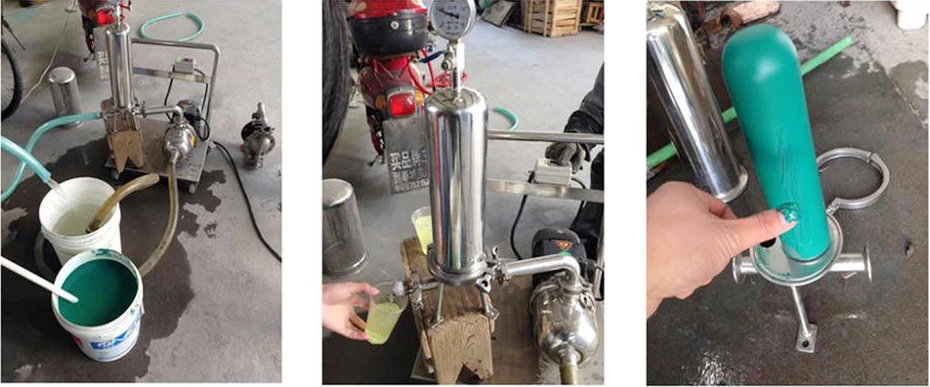

On-site Experiment
Packing & Delivery
