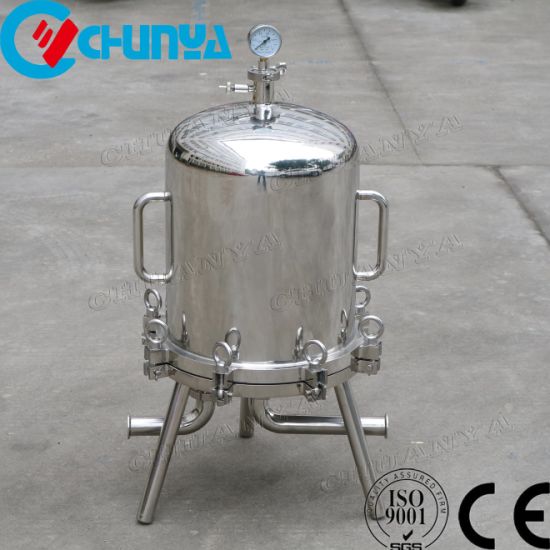

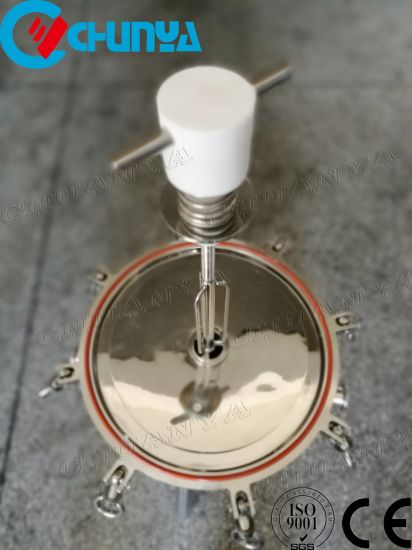

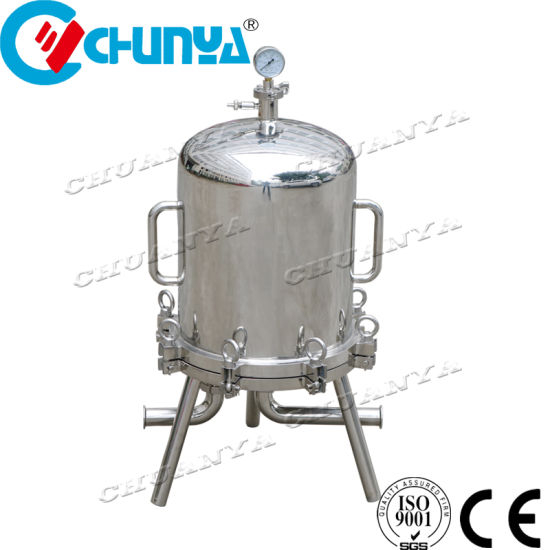

Sanitary Depth Stack Filter Cartridge Filtration Beer Lenticular Filter Housing

Quantity:

Sanitary Depth Stack Filter Cartridge filtration beer lenticular filter Housing

Description:

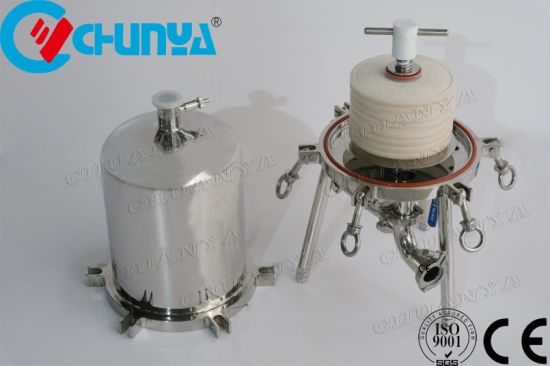

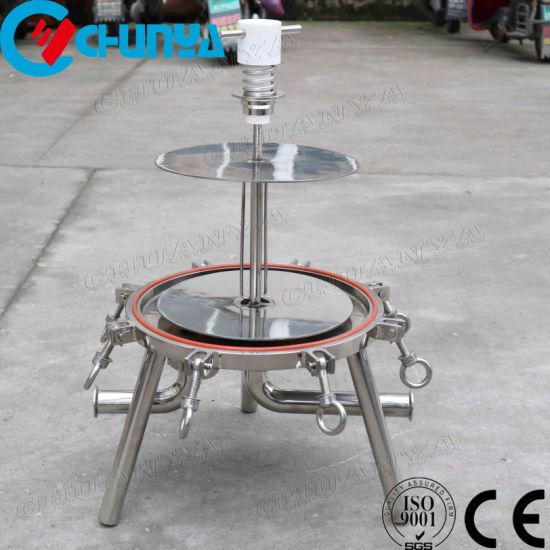

Depth-Stack Filter Cartridges are a new type of filter cartridge using depth filter sheets.It is designed using a double separator concept.The Separator design increases the total stability of the filter cartridges as the separators fully support the sheet material.This design also prevents filter sheet deformities after heat treatments and adverse effects of contact with hot sanitation.It is manufactured with rigid external clips to prevent damaging filter sheets during module loading and unloading while allowing for easy and reliable handling.

Features :
• Washable under certain conditions,resulting in high total throughput
• Easy and reliable handling Rigid external clips prevent damage of the filter sheet during module loading and unloading
• No filter sheet deformities after heat treatment
• No adverse effects to filter sheets when in contact with hot sanitization or process filtration
• Increased filtration security Separator design increases the total stability of the filter cartridges as the separators fully support the sheet material.

-- Particle Removal
-- Polishing Filtration
-- Final Filtration (germ removal)
-- Chill Haze Removal
-- Bottling Filtration
-- Clarifying Filtration
-- Filtration after Stabilization
-- Pre-filtration prior to Final Membrane Filters
-- Removal of Colloids

Application:
Food & Pharmaceutical's production area: beverage, beer, drugs, dairy and etc.
• Water Finish: R.O reverse osmosis filtration for drinking water
• The electronic industry: electronic and microelectronics, semiconductor industry water filtration.
• Chemical industry: liquid products making and raw material filtration (acid, alkali, alcohol), organic solvent and water filtration.
• Other fields: pure water pre-filtration, electroplating liquid, industrial oils, water filtration in oil field and boiler, etc.


Specifications:
Dimension OD 8 " , 12 " , 16 " ,

Material

of

Constructions

Depth filter sheet Cellulose fibers, Resins,Perlite, Natural diatomaceous earths, and etc
Core Polypropylene (PP)
Separator Polypropylene (PP)
Double O-ring Silicone, EPDM, Viton
Flat gasket Silicone, EPDM, Viton
Construction 7 Cell , 8 Cell , 9 Cell , 12 Cell , 14 Cell , 15 Cell , 16 Cell
Performance Typical ratings C002:0.2-0.4µm
C004:0.4-0.6μm
C100:1-3µm
C150:2-5µm
C200:3-7µm
Sanitary Depth Stack Filter Cartridge Filtration Beer Lenticular Filter Housing
About US
The Payment Term:
TT 40% down payment and 70% balance agaisnt copy of B/L,L/C also can be accepted.
Delivery Date:
5-10 days according to different product.
The Transport Pattern:
Sea shipping or air transport.
Package way:
Wooden case
The Logo Issue:
If quantity is large,it absolutely no problem to do OEM.



The above-mentioned data is the standard, it can customize according to customer's requirements.
