Stainless Steel Customized Storage Heat Preservation Tank

Quantity:

PDF export

High Quality Industrial  Stainless Steel Customized Storage Heat Preservation Tank

Application
Suitable for the pharmaceutical industry of pure water storage, injection water storage, liquid storage, intermediate buffer, also applies to normal temperature and warming storage of the food, milk, juice etc.
Feature

Realize flexible mobile, with buffer storage function, and can add mixing, cleaning, heating or cooling function.
reasonable design of the brake wheel, pedal or forklift groove, suitable for raw materials or finished product of mobile, convenient off-line cleaning.
Can be optional of single layer tank or jacket form or there layer with insulation;
There are 75L~2000L variety of specifications, it can be designed, customized according to the customers' requirements.

About US
The Payment Term:
TT 40% down payment and 70% balance agaisnt copy of B/L,L/C also can be accepted.
Delivery Date:
5-10 days according to different product.
The Transport Pattern:
Sea shipping or air transport.
Package way:
Wooden case
The Logo Issue:
If quantity is large,it absolutely no problem to do OEM.
Detailed Information

Detailed Information

Design Parameter
Design pressure ATM~0.6Mpa
Design temperature According to the customers' requirements(0ºC~160ºC)

Surface Finish
Finish type Mechanical polishing, electrolytic polishing, sand blasting, picking
Polishing precision Mirror Polish Ra≤0.4μm

Connection
Inner-outlet Tri-clamo, Flange, Thread

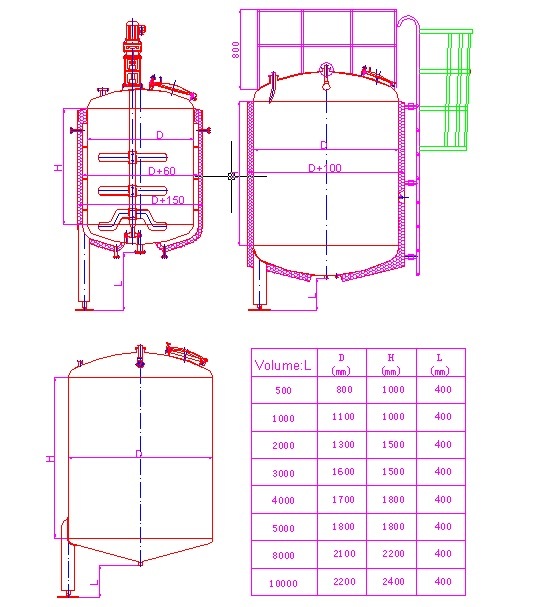

Normal Model And Main Technical Parameters
Parameter Model CYGCD-75 CYGCD-150 CYGCD-300 CYGCD-600 CYGCD-1000 CYGCD-2000
Effective volume:L 75 150 300 600 1000 2000
Barrel Diameter:mm Ф250 Ф600 Ф800 Ф1000 Ф1100 Ф1300
Height:mm 460 550 600 800 1000 1500
Mixing Motor power:KW 0.37 0.55 0.75 0.75 1.1 1.5
Mixing work RPM :r/min 200(propeller) (The design can be adjusted according to customers' usage)

Stainless Steel Customized Storage Heat Preservation Tank
The above-mentioned data is the standard, it can customize according to customer's requirements.
Stainless Steel Customized Storage Heat Preservation Tank
Stainless Steel Customized Storage Heat Preservation Tank
Stainless Steel Customized Storage Heat Preservation Tank
Stainless Steel Customized Storage Heat Preservation Tank
Stainless Steel Customized Storage Heat Preservation Tank
