Stainless Steel Polished Three-Stage Folding Filter Housing

Quantity:

PDF export

Stainless Steel polished Three-stage folding filter

Features:
Light weight, large filtering area, fast flow, well-distributed hole.
Better thermal and chemical stability.
It is convenient to disassemble and assemble filter.

Application:
• Food & Pharmaceutical's production area: beverage, beer, drugs, dairy and etc.
• Water Finish: R.O reverse osmosis filtration for drinking water
• The electronic industry: electronic and microelectronics, semiconductor industry water filtration.
• Chemical industry: liquid products making and raw material filtration (acid, alkali, alcohol), organic solvent and water filtration.
• Other fields: pure water pre-filtration, electroplating liquid, industrial oils, water filtration in oil field and boiler, etc.

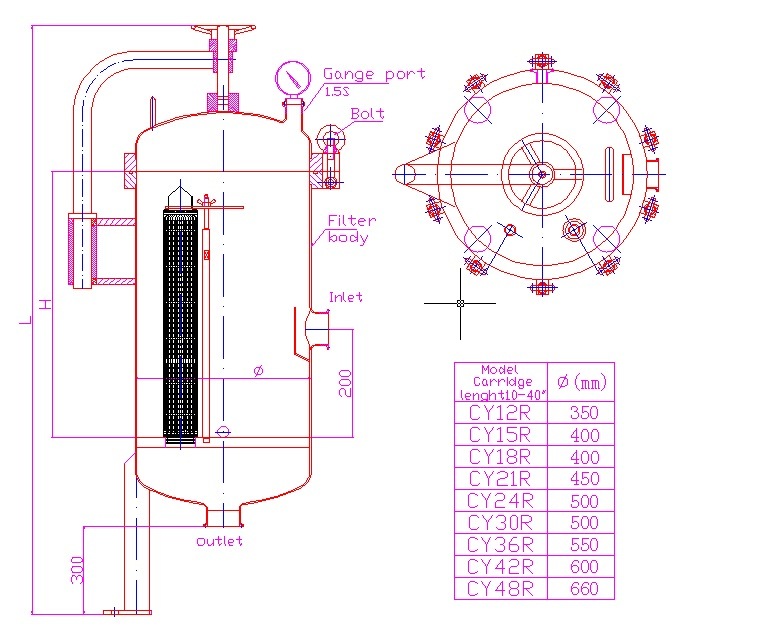

Stainless Steel Polished Three-Stage Folding Filter Housing
Material 304SS, 316(L)SS
Filter Cartridge Matterial PP, PTFE, PES, Nylon
Cartridge Length 10'', 20'', 30'', 40''.
Adaptor 222, 226, DOE
Inlet&Outlet Connection Tri-clamp; Weld; Threaded; Falnged
Seal Material EPDM; PTFE; Viton; Silicone
Surfacew Finish Mirror Polish Ra≤0.4μm


The above-mentioned data is the standard, it can customize according to customer's requirements.
