Factory Stainless Steel Titanium Rod Filter Supplier
Advantages 1. It has a convenient replacement with simple, flexible, and energy-efficient manipulation.
2. Filter area is large, for any fine particles or suspended matter, range from 0.5 to 1000 microns.
3. Unit range of flow rate is large, smaller filtration resistance, and high filtration efficiency.
4. Less investment cost, longer service life and lower price, etc. Application • Food industry: beverage, liquor, purified water, etc.
• Drugs industry: decarbonization, medical filtration, biologic extraction purification.
• The electronic industry: electronic and microelectronics, semiconductor industry water filtration.
• Chemical industry: liquid products making and raw material filtration (acid, alkali, alcohol), organic solvent and water filtration.
• Other fields: pure water pre-filtration, electroplating liquid, industrial oils, water filtration in oil field and boiler, etc.
Technical Parameters: Accuracy: 0.22μm~100µm.
Porosity: 28-50%
Working pressure: 0.5-1.5Mpa
Working temperature: ≤300ºC
Diameter: Φ30mm, Φ40mm, Φ50mm, Φ60mm, Φ70mm, Φ80mm, Φ90mm
Length: 125mm, 250mm, 300mm, 500mm, 750mm, 1000mm

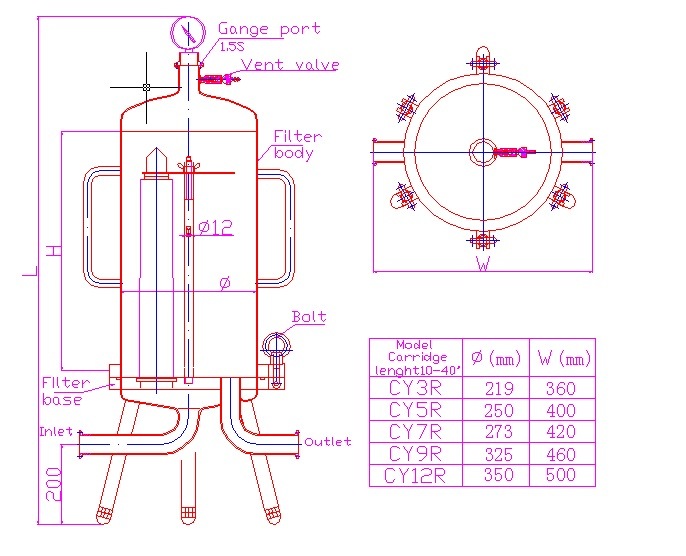

Interface: 226, 222, threaded fittings, flange or as your requirement. Selection Table:
| [Qty. Of
Cartridge] | [Model of
Cartridge] | [Cartridges
connection] | [Shell
Material] | [In-outlet
Connection] | [O-ring] |
| CYGCD | 5R | 20 | D | 4 | K | E |
| | 3R=3pcs | 10=10''
Cartridge | D=DOE type | 4= 304 | F=flange | E=EPDM |
| | 5R=5pcs | 20=20''
Cartridge | T=222 type | 6= 316L | K=Tri-clamp | P=PTFE |
| | 9R=9pcs | 30=30''
Cartridge | S=226 type | | L=Thread | V=Viton |
| | | 40=40''
Cartridge | | | | S=Silicone |
About US The Payment Term: TT 40% down payment and 70% balance agaisnt copy of B/L,L/C also can be accepted. Delivery Date: 5-10 days according to different product. The Transport Pattern: Sea shipping or air transport. Package way: Wooden case The Logo Issue: If quantity is large,it absolutely no problem to do OEM. The above-mentioned data is the standard, it can customize according to customer's requirements. Compnay Show
