Bag Filter for Water Purification

These filter bag housings resist corrosion for a long service life in harsh environments. They have a high-flow capacity for filtering large quantities of material. Housings come with a strainer basket to support a filter bag (sold separately). They have a threaded drain with a plug for easy cleaning. Bolt the legs to the floor for stability.
  • 3B~20B
  • CHUANYA
  • 8421999090
  • 1
  • US $100/ Piece
  • Wooden
  • Stainless Steel
  • Water
  • L/C, T/T
  • 1000PCS/ Month
  • Mirror Polish, Electro Polish Ra<0.4um
  • Water Purifier
  • Food,Beverage, Water
  • 1.0MPa
  • Ss 304/316L
  • Electric Power
  • Flange
  • 150ºC
  • Ningbo, China
Quantity:

PDF export

Bag Filter for Water Purification

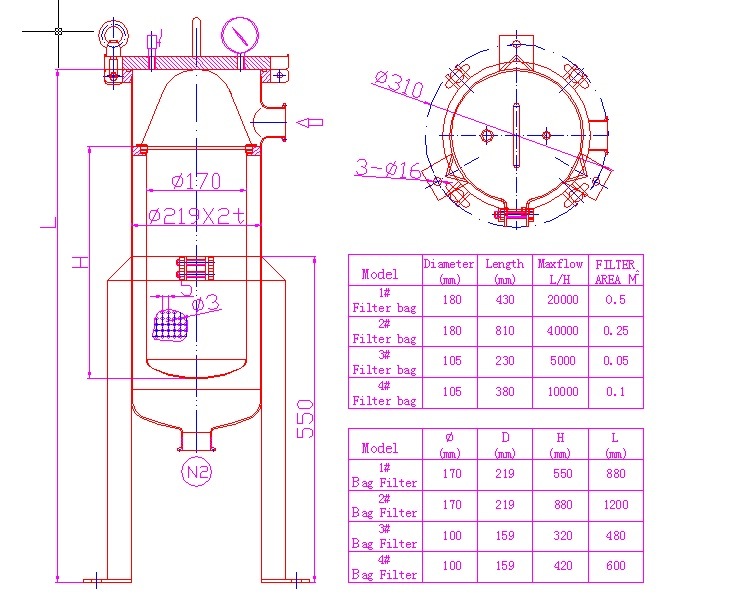

304 stainless steel housings offer very good corrosion resistance. 316 stainless steel housings have excellent corrosion resistance. Housings with eyebolt cover provide a tight seal. Housings with clamp cover allow for easy access to the filter bag for quick replacements. The optional strainer baskets (sold separately) are for use with Styles A and D. Only the baskets with 9/64" perforations will work with a filter bag. The optional high-purity cartridges are also known as absolute-rated cartridges; they filter 99.9% of particles. They are for use with Style B. To Order: For optional perforated strainer baskets, please specify the opening size: 1/16 , 9/64 , 3/16 , or 1/4 . For optional mesh strainer baskets, please specify a mesh size: 20, 40, 60, 100, or 150.  CAD models availableFor technical drawings please contact me.


Advantages

1. It has a convenient replacement with simple, flexible, and energy-efficient manipulation.
2. Filter area is large, for any fine particles or suspended matter, range from 0.5 to 1000 microns.
3. Unit range of flow rate is large, smaller filtration resistance, and high filtration efficiency.
4. Less investment cost, longer service life and lower price, etc.

About US
The Payment Term:
TT 50% down payment and 50% balance agaisnt copy of T/T also can be accepted.
Delivery Date:
5-10 days according to different product.
The Transport Pattern:
Sea shipping or air transport.
Package way:
Wooden case
The Logo Issue:
If quantity is large,it absolutely no problem to do OEM.

Side Entry Bag Filter for Commercial Water Purification
The above-mentioned data is the standard, it can customize according to customer's requirements.


Side Entry Bag Filter for Commercial Water Purification
Side Entry Bag Filter for Commercial Water Purification
Side Entry Bag Filter for Commercial Water Purification
Side Entry Bag Filter for Commercial Water Purification
Side Entry Bag Filter for Commercial Water Purification
