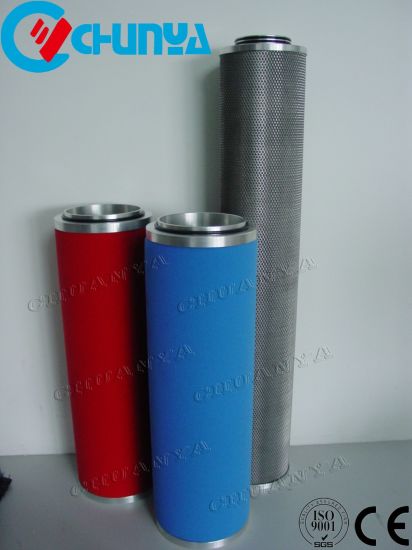

Name: Compressed air filter elements
Brand: CHUANYA
Rating: 5.0 (86 reviews)

You are here: Home » Products » Filter Cartridges » Compressed air filter elements

Model	Connection	Flow rate(m³/min)	Width	Height	[Qty. Of Cartridge]
Model	Connection	Flow rate(m³/min)	A	B	[Qty. Of Cartridge]
H*-1	Dn25	1	103	310	1
H*-2	Dn25	2	103	310	1
H*-3	Dn40	3	123	385	1
H*-5	Dn40	5	123	510	1
H*-7	Dn40	7	123	510	1
H*-12	Dn50	12	136	600	1
H*-15	Dn65	15	152	850	1
H*-20	Dn65	20	152	950	1
H*-15	Dn65F	15	380	1000	1
H*-20	Dn80F	20	380	1200	1
H*-25	Dn80F	25	380	1300	1
H*-30	Dn100F	30	420	1000	2
H*-40	Dn100F	40	420	1200	2
H*-50	Dn100F	50	420	1300	2
H*-60	Dn125F	60	500	1200	3
H*-75	Dn125F	75	500	1300	3
H*-80	Dn150F	80	560	1300	4
H*-100	Dn150F	100	560	1300	4
H*-125	Dn200F	125	600	1500	5
H*-150	Dn200F	150	600	1500	6
H*-175	Dn200F	175	600	1500	7
H*-200	Dn250F	200	700	1500	8
H*-225	Dn250F	225	700	1500	9
H*-250	Dn250F	250	800	1500	10
H*-300	Dn300F	300	800	1500	12
* Represents filtering level models; caliber midpoint F filter flange interfaces; this series of filters maximum working pressure 1.0Mpa;

Model	Connection	Flow rate(m³/min)	Width	Height	[Qty. Of Cartridge]
Model	Connection	Flow rate(m³/min)	A	B	[Qty. Of Cartridge]
H*-1	Dn25	1	103	310	1
H*-2	Dn25	2	103	310	1
H*-3	Dn40	3	123	385	1
H*-5	Dn40	5	123	510	1
H*-7	Dn40	7	123	510	1
H*-12	Dn50	12	136	600	1
H*-15	Dn65	15	152	850	1
H*-20	Dn65	20	152	950	1
H*-15	Dn65F	15	380	1000	1
H*-20	Dn80F	20	380	1200	1
H*-25	Dn80F	25	380	1300	1
H*-30	Dn100F	30	420	1000	2
H*-40	Dn100F	40	420	1200	2
H*-50	Dn100F	50	420	1300	2
H*-60	Dn125F	60	500	1200	3
H*-75	Dn125F	75	500	1300	3
H*-80	Dn150F	80	560	1300	4
H*-100	Dn150F	100	560	1300	4
H*-125	Dn200F	125	600	1500	5
H*-150	Dn200F	150	600	1500	6
H*-175	Dn200F	175	600	1500	7
H*-200	Dn250F	200	700	1500	8
H*-225	Dn250F	225	700	1500	9
H*-250	Dn250F	250	800	1500	10
H*-300	Dn300F	300	800	1500	12
* Represents filtering level models; caliber midpoint F filter flange interfaces; this series of filters maximum working pressure 1.0Mpa;
