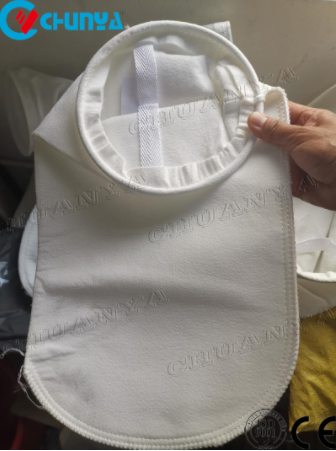

Polypropylene, Polyester, Nylon, Nomex Liquid Filter Bag

Filter Bags are made of high quality PP, PET or Nylon media. There are various sizes and styles for different operating conditions and applications requirements. The media has features of uniform pore size, high efficiency, high dirt holding capacity. The surface can be done with singeing, calendering or coating, no fiber releasing.
  • Size 1:Φ180mm x L420mm Size 2:Φ180mm x L810mm Size 3:Φ102mm x L220mm Size 4:Φ102mm x L380mm Size 5:Φ150mm x L510mm
  • CHUANYA
  • 8421991000
  • 100
  • US $1-10/ Piece
  • Carton /Wooden Case or According to Customer′s Requiremen
  • PP, PET, NYLON, Collar Ring:SS, PP, PET
  • T/T
  • 2000PCS/ Month
  • [ Max. Operating temperature ] PP:80 ℃ PET:120 ℃ NYLON:160 ℃ [ Max. Operating D.P.] PP:2.0bar@20 ℃, 1.0bar@80 ℃ PET:2.0bar@20 ℃, 1.0bar@120 ℃ NYLON:2.0bar@20 ℃, 1.0bar@80 ℃
Quantity:

PDF export

Liquid Filter Bags

Filter Bags are mostly used for various types of liquid/process filtration. They are made from a variety of Medias like Polypropylene, Polyester, Nylon and Nomex. This filter bags are used to remove solid particles from liquid where the proportion of solid is high or the fluid is very viscous. These filter bags are available in wide range from 1 - 200 micron.

Features

- Can handle higher flow rate
- High dirt holding capacity
- Low Pressure drop
- Easy Maintenance

Technical Specifications
Standard sizes
- 4" x 10" Long
- 4" x 17" Long
- 4" x 20" Long
- 7" x 17" Long
- 7" x 32" Long
- 6"x 20" Long
Filtration Rating: - 1, 2, 5, 10,25,50,100,150,200 micron
Filter Media: Polypropylene, Polyester,Nylon,Nomex
TYPES OF FILTER BAGS

- Polypropylene Filter Bags
- Absolute Filter Bags
- Carbon Bags
- Water Absorbent Bags
- Oil Adsorbing Filter Bags

Application

- Viscous applications like honey,wax,etc.
- Paints
- Inks
- Oils
- Cooling Water
- Fats
- Food Ingredients


The above-mentioned data is the standard, it can customize according to customer's requirements.
