Single Bag Filter Housing for Water And Beer Brewing Equipment

1. High filtration accuracy, for any fine particles or suspended matter, range from 0.5 to 1000 microns.
2. Unit filter area is large, a smaller filtration resistance, high filtration efficiency.
3. Unique design to prevent the bag sunk into basket under pressure,it ensure 100% no spills.
4. The filter has the advantages of high efficiency, small amount of maintenances, long service life, elegant appearance, and etc.
Quantity:

PDF export

Reasonble Price Single Bag Filter for Water Treatment

Application
• Water treatment: NF, UF, RO and ion exchange resin, etc.
• Food and beverage industry: filtration of juice, tea drinks, beer, liquor, wine, rice  wine, healthy drinks and bottled purified water, etc.
• The electronic industry: electronic and microelectronics, semiconductor industry water filtration.
• Fine chemicals industry: bio-engineering, oil refined, cleaning mixture, scientific experiments, etc.

Characteristics

1. High filtration accuracy, for any fine particles or suspended matter, range from 0.5 to 1000 microns.
2. Unit filter area is large, a smaller filtration resistance, high filtration efficiency.
3. Unique design to prevent the bag sunk into basket under pressure,it ensure 100% no spills.
4. The filter has the advantages of high  efficiency, small amount of maintenances, long service life, elegant appearance, and etc.

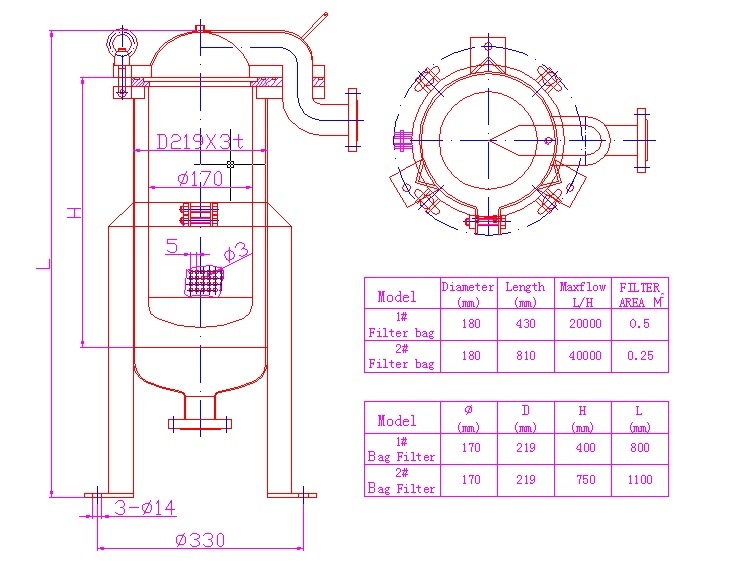

Single Bag Filter Housing for Water and Beer Brewing Equipment
Surface Finish
Finish Type Mechanical polishing, Electrolytic
Polishing, Sand blasting, picking
Polishing
pressure
Mirror Polish Ra≤0.4μm

Operating Conditions
Max Operating
pressure.
1.0MPa
Max Operating
Temp.
150ºC

Material
Shell 304, 316L
O-ring EPDM, PTFE, Viton, Silicone

Connection
Shell Connection Flange
In-outlet Flange,Quick-open, Screw thread
Pressure Gauge
(optional)
M14×1.5 Female Screw thread
Vent Valve(optional) 1/4'' Male Screw thread

The above-mentioned data is the standard, it can customize according to customer's requirements.



Single Bag Filter Housing for Water and Beer Brewing Equipment
Single Bag Filter Housing for Water and Beer Brewing Equipment
Single Bag Filter Housing for Water and Beer Brewing Equipment
Single Bag Filter Housing for Water and Beer Brewing Equipment
Single Bag Filter Housing for Water and Beer Brewing Equipment
