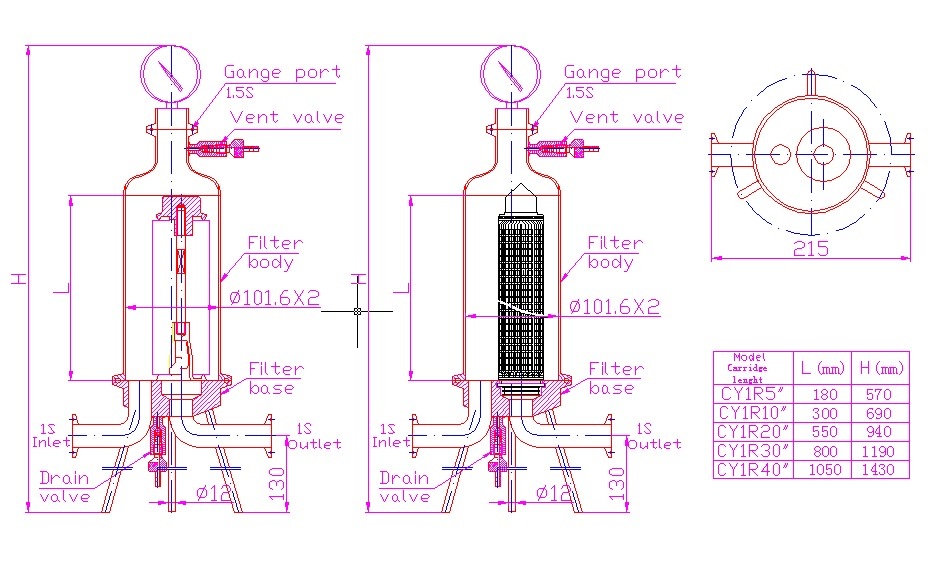

10 Inch Stainless Steel Single Cartridge Filter Housing
Features: Light weight, large filtering area, fast flow, well-distributed hole.
Better thermal and chemical stability.
It is convenient to disassemble and assemble filter. Application: • Food industry: beverage, liquor, purified water, etc.
• Drugs industry: decarbonization, medical filtration, biologic extraction purification.
• The electronic industry: electronic and microelectronics, semiconductor industry water filtration.
• Chemical industry: liquid products making and raw material filtration (acid, alkali, alcohol), organic solvent and water filtration.
• Other fields: pure water pre-filtration, electroplating liquid, industrial oils, water filtration in oil field and boiler, etc. Technical Parameters: Accuracy: 0.1, 0.2, 0.45, 1, 3, 5, 10~100µm.
Material: PP, PES, PTFE, ACF, nylon membrane, etc.
Length: 10, 20, 30, 40.
Interface: 226, 222, flat pressing.
Working pressure: < 0.4Mpa About US The Payment Term: TT 40% down payment and 70% balance agaisnt copy of B/L,L/C also can be accepted. Delivery Date: 5-10 days according to different product. The Transport Pattern: Sea shipping or air transport. Package way: Wooden case The Logo Issue: If quantity is large,it absolutely no problem to do OEM.
The above-mentioned data is the standard, it can customize according to customer's requirements.
|Model ||Flow rate(T/H) ||Filtration area(M2) ||Working pressure(Mpa) |
|SF-1R10" ||0.5 ||0.5 ||0.6 |
|SF-1R20" ||1 ||1 ||0.6 |
|SF-1R30" ||1.5 ||1.5 ||0.6 |
|SF-1R40" ||2 ||2 ||0.6 |
