Multi Stage High Quality Food Grade Stainless Steel Polished Movable Mixing Tank
Detailed Information Feature 1. There are 600L-20000L variety of specifications, it can be designed, customized according to the customers' requirements.
2. Nsulation material is rock wool (keep warm) or PU (Keep cool)
3. Connector use tri-clamp, inner tank use SS304 OR SS316L, the inner surface mirror polishing.
4. Ra≤0.4μm, outer surface can be polishing, wiredrawing, sandblasting according to customers' requirement. Application • Water treatment: NF, UF, RO and ion exchange resin, etc.
• Food and beverage industry: filtration of juice, tea drinks, beer, liquor, wine, rice wine, healthy drinks and bottled purified water, etc.
• Drugs industry: injections, medical filtration, biologic extraction, purification and concentration.
• Petrochemical industry: oil extraction reinjection, chemical reagents, lubricant and high-purity chemical was filtered.
• The electronic industry: electronic and microelectronics, semiconductor industry water filtration.
• Fine chemicals industry: bio-engineering, oil refined, cleaning mixture, scientific experiments, etc. Design Parameter Design pressure | ATM~0.6Mpa |
Design temperature | According to the customers' requirements(0ºC~160ºC) |
Surface Finish Finish type | Mechanical polishing, electrolytic polishing, sand blasting, picking |
Polishing precision | Mirror Polish Ra≤0.4μm |
Connection Inner-outlet | Tri-clamo, Flange, Thread |

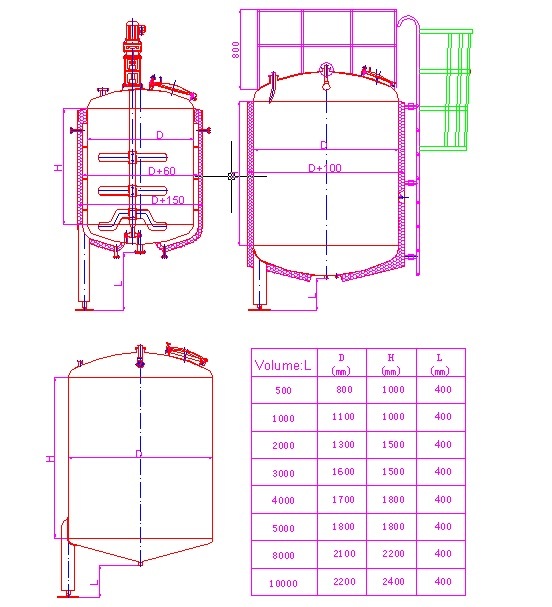

Normal Model And Main Technical Parameters Parameter | Model | CYGCD-75 | CYGCD-150 | CYGCD-300 | CYGCD-600 | CYGCD-1000 | CYGCD-2000 |
Effective volume:L | 75 | 150 | 300 | 600 | 1000 | 2000 |
Barrel | Diameter:mm | Ф250 | Ф600 | Ф800 | Ф1000 | Ф1100 | Ф1300 |
Height:mm | 460 | 550 | 600 | 800 | 1000 | 1500 |
Mixing | Motor power:KW | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 |
Mixing work RPM :r/min | 200(propeller) (The design can be adjusted according to customers' usage) |
The above-mentioned data is the standard, it can customize according to customer's requirements. Company Show
