Food Grades Stainless Steel Tank for Milk

  • PBF-1S~PBF-2S
  • CHUANYA
  • 1
  • US $100 Piece
  • Wooden
  • L/C, T/T
  • 1000PCS/ Month
  • Mirror Polish, Electro Polish Ra<0.4um
  • Ozone Water Purifier
  • Chemical Industry
  • 0.6MPa
  • CE, GS, CSA
  • Ss 304/316/316L
  • Pressure
  • Flange
  • 0~250c
  • Ningbo, China
Quantity:

Food Grades Stainless Steel Tank for Milk

Feature

1. There are 600L-20000L variety of specifications, it can be designed, customized according to the customers' requirements.
2. Nsulation material is rock wool (keep warm) or PU (Keep cool)
3. Connector use tri-clamp, inner tank use SS304 OR SS316L, the inner surface mirror polishing.
4. Ra≤0.4μm, outer surface can be polishing, wiredrawing, sandblasting according to customers' requirement.

Application

• Water treatment: NF, UF, RO and ion exchange resin, etc.
• Food and beverage industry: filtration of juice, tea drinks, beer, liquor, wine, rice  wine, healthy drinks and bottled purified water, etc.
• Drugs industry: injections, medical filtration, biologic extraction, purification and concentration.
• Petrochemical industry: oil extraction reinjection, chemical reagents, lubricant and high-purity chemical was filtered.
• The electronic industry: electronic and microelectronics, semiconductor industry water filtration.
• Fine chemicals industry: bio-engineering, oil refined, cleaning mixture, scientific experiments, etc.

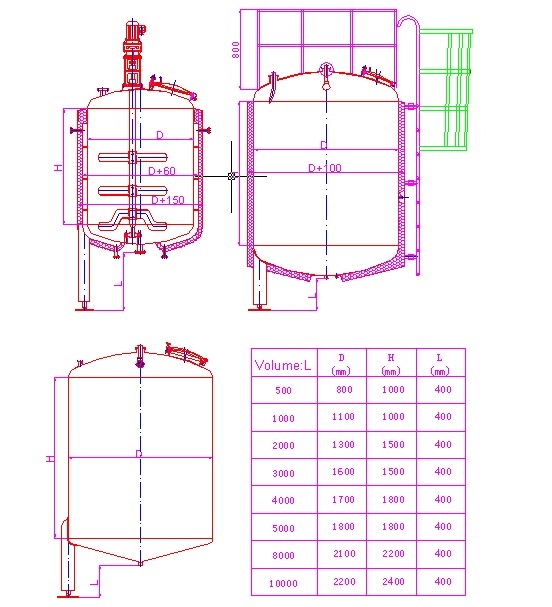

Parameter Model CYGCD-75 CYGCD-150 CYGCD-300 CYGCD-600 CYGCD-1000 CYGCD-2000
Effective volume:L 75 150 300 600 1000 2000
Barrel Diameter:mm Ф250 Ф600 Ф800 Ф1000 Ф1100 Ф1300
Height:mm 460 550 600 800 1000 1500
Mixing Motor power:KW 0.37 0.55 0.75 0.75 1.1 1.5
Mixing work RPM :r/min 200(propeller) (The design can be adjusted according to customers' usage)

Food Grades Stainless Steel Tank for Milk
The above-mentioned data is the standard, it can customize according to customer's requirements.

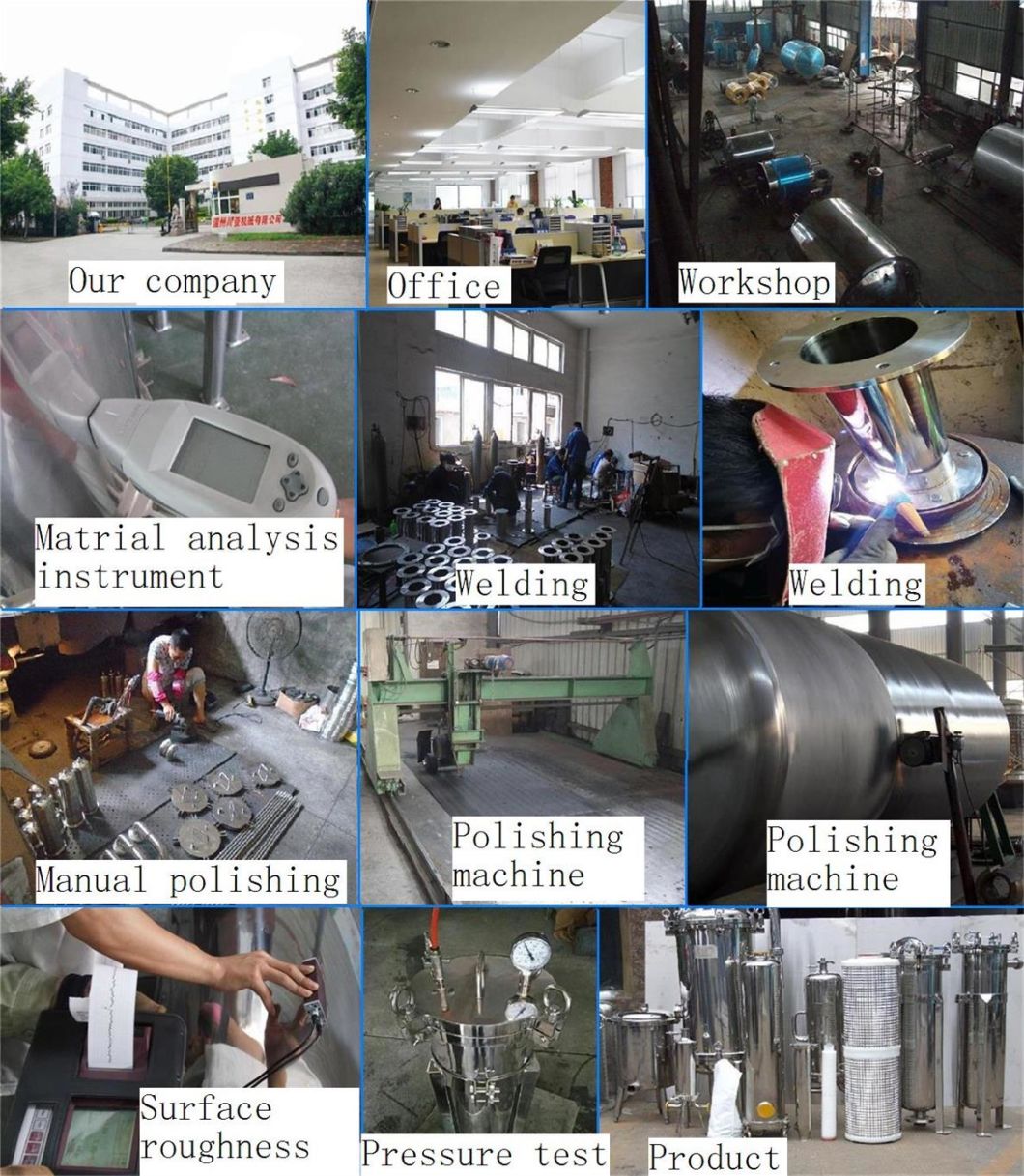

Company Show

Food Grades Stainless Steel Tank for Milk
