Stainless Steel Filter Housing made of SUS316L or SUS304, and take filter cartridge as its element.

Views: 5     Author: Site Editor     Publish Time: 2021-06-19      Origin: Site

Inquire


Stainless Steel Filter Housing made of SUS316L or SUS304, and take filter cartridge as its element. The stainless steel filter housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate. It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance. In addition, it is easy to wash and function as back flush, and is ideal filtration equipment for the industry of biology and pharmacy, beer and beverage, textile, power plant, chemical, and water treatment etc.

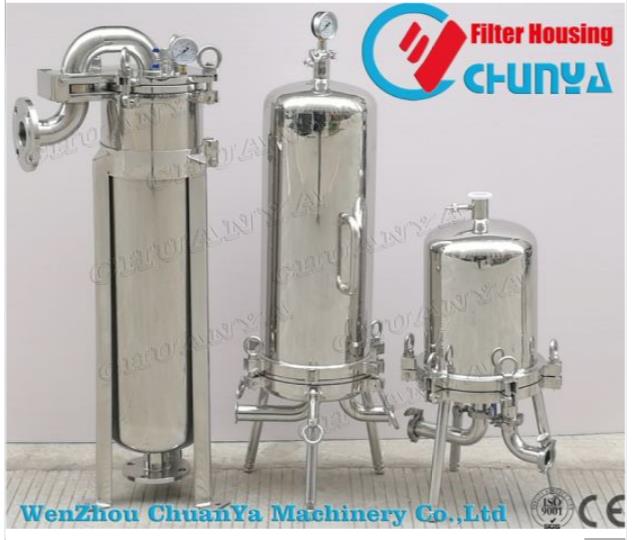

Premium Ss Cartridge Filter Housing 2



Specifications:


Product name:
Stainless Steel cartridge filter housing
Material
SUS304, SUS316, SUS316L
Cartridge core
single or multi-cartridge
Cartridge length
2.5'', 5'', 10, 20 ,30 ,40, 50'' or OEM
Cartridge Quantity
1 ~ 160 pcs for option
Surface treatment
Polished or sandblast external
Cartridge end cap
226/222/215/DOE/Flat/Fin
Suitable filter cartridges
PP melt blown, Pleated filter, CTO activated carbon, Stainless steel mesh/pleated filter cartridges.
Top Cap installed type
lifting bolts, flange, tri clamp
inlet/outlet connection
clamp, thread, flange, pogoda
Seal O-ring
silicon,NBR, EPDM, Viton, PTFE
Usage
Liquid, gas filtration
Max working pressure
100, 150Psi, OEM
Wall thickness
1.2~6mm


Applications:


1. Industrial water treatment
2. Food & Beverage: bottled water, beers, wines, flavors, polishing, clarification
3. Chemicals & Petrochemicals: Solvents, solutions, chemical filtration, acids, bases
4. Health Care & Pharmaceuticals: Membrane filtration, ophthalmic, oral medicines, serum
5. Industrial processes: clean water, removal of carbon
6. Paints & Coatings: paints, coatings
7. Electronics: High purity water, photo resists
8. Cosmetics: Alcohols, creams, lotions, essential oils, mouthwashes
